10 mm Steel Axle for Surf-Rodz Trucks – M8 Internal Thread

10 mm Steel Axle for Surf-Rodz Trucks – M8 Internal Thread

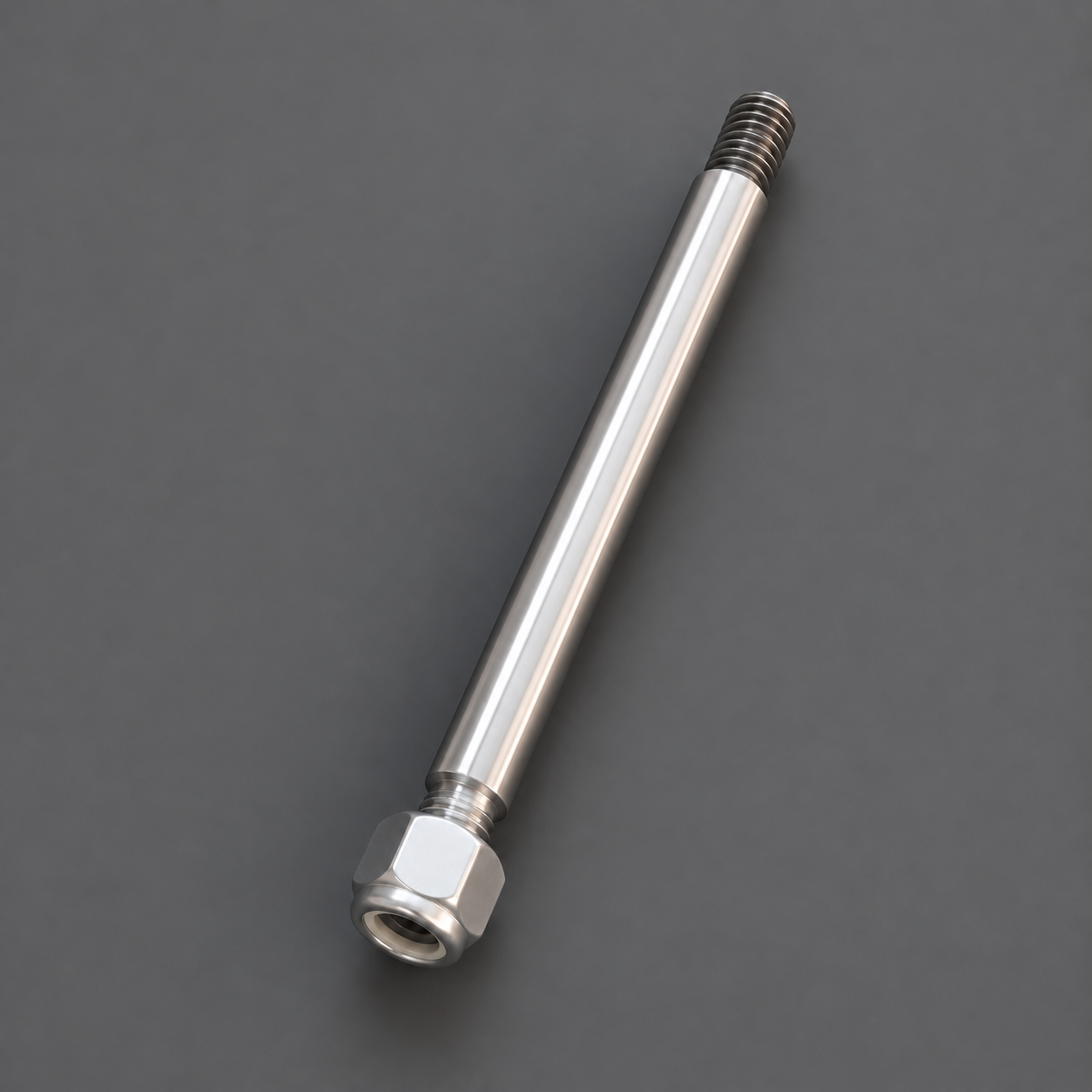

High-strength steel axle with a 10 mm diameter shaft, an M8 metric internal thread and a 3/8″ UNF nut (24 TPI). Compatible with Surf-Rodz trucks.

The entire axle is made from high-strength steel with property class 12.9. The included 3/8″ UNF nut has a strength class equivalent to 8.8.

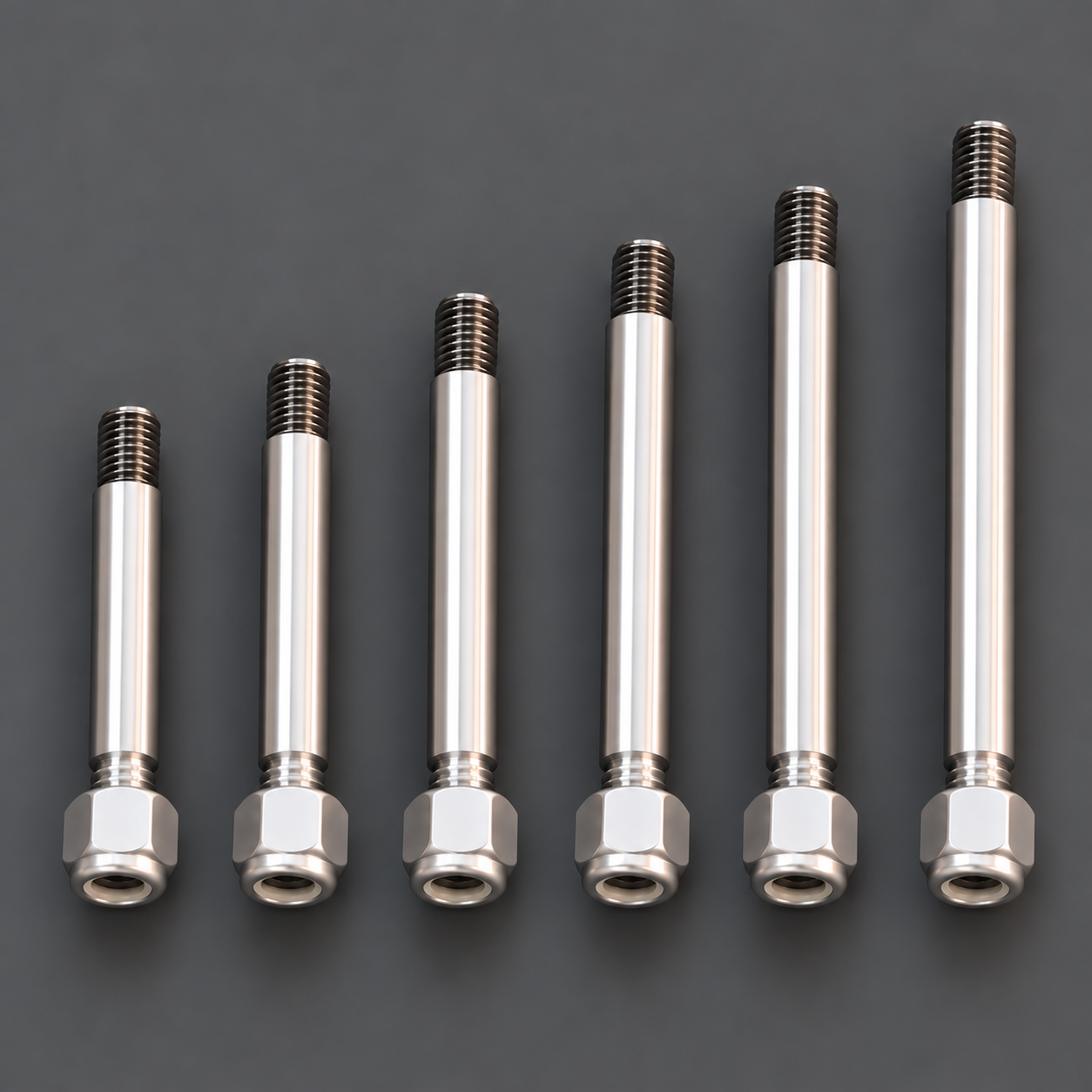

Available lengths: 57 | 67 | 77 | 87 | 97 | 107 mm

Length measurement: The specified axle length excludes the M8 internal thread but includes the entire external 3/8″ UNF threaded section (24 TPI). The measurement extends to the very end of the axle, including the external thread.

Specifications:

• Material: Steel
• Shaft diameter: 10 mm
• Internal thread: M8 metric
• Axle strength class: 12.9
• External thread: 3/8″ UNF (24 TPI)
• External thread length: Approx. 15 mm
• Nut thread: 3/8″ UNF (24 TPI)
• Nut strength class: Equivalent to 8.8
• Compatibility: Surf-Rodz trucks

Package includes: 1 × steel axle and 1 × 3/8″ UNF nut.
