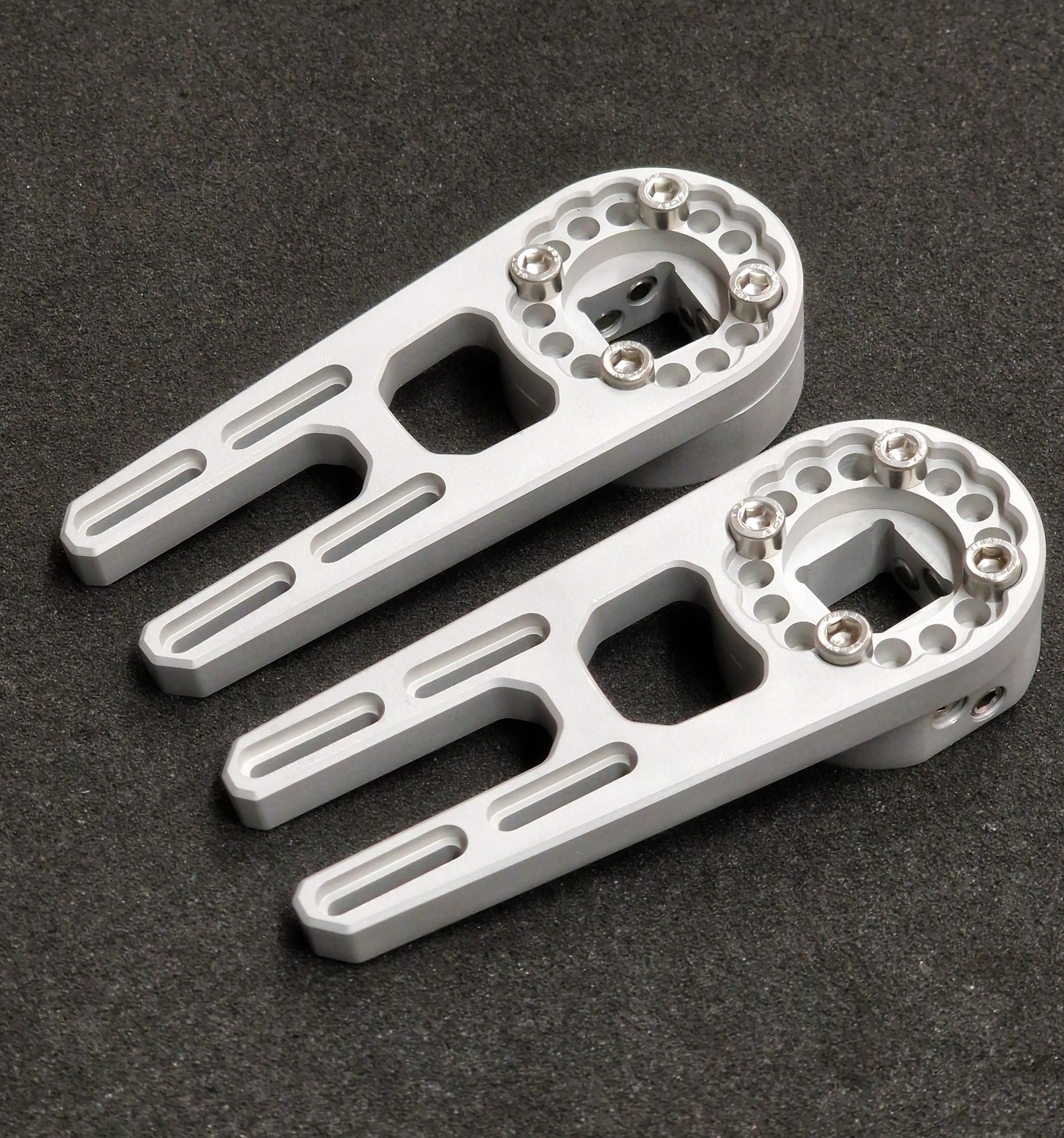

Motor mounts v11.2 with an adjustment range of 56-72 mm and 60-82 mm

Motor Mounts v11.2 for MTB and Longboard Trucks with Expanded Adjustment Range (56-72 and 60-82mm)
Compatible with the following trucks:

• IDEA Double Delta 270, 300, 320
• IDEA RKP
• IDEA TKP hangers for Surf-Rodz base plates
• Duality Trucks by Tito Systems (22mm x 22mm radius 6mm)
• MBS Matrix II
• MBS Matrix III
• Trampa ATB: 19.5×19.5mm
• Apex Air (22×22, radius 6mm)
• Boardnamics 220, 270mm
• Torque 220 CNC
• Trampa 12 Fifties
• 3DServisas FatBoy Solid (19.70 x 18.10)
• 3DServisas FatBoy Finality Channel (20×20)
• Newbee Triplelinks (22×22, 6mm Chamfer)

Contact us for clamps for other trucks.

Features and Advantages:

Expanded Adjustment Range: The v11.2 motor mounts offer an increased adjustment range of 60-82mm, providing enhanced compatibility and fine-tuning options for various setups.
High-Strength Material: Constructed from 7075 aluminum alloy, known for its exceptional strength-to-weight ratio. This ensures durability and resistance to mechanical stress, bending, or deformation.
Tilt Angle Adjustment: Standard 22.5 degrees with an optional intermediate setting of 11.25 degrees by reversing the mounting clamp.
Designed for 63xx Motors: Accommodates motors with a 44x44mm mounting hole pattern.
Robust Construction: Motor plate thickness is 10mm, and terminal thickness is 15mm. Each clamp features 4 M8 grub bolts for a secure fit.
Clamp Diameter: 58mm.
Included: 8 stainless steel M4x10mm screws for motor mounting.

Price: Includes 2 motor mounts (left + right) + M4x10 screws for motor mounting.
