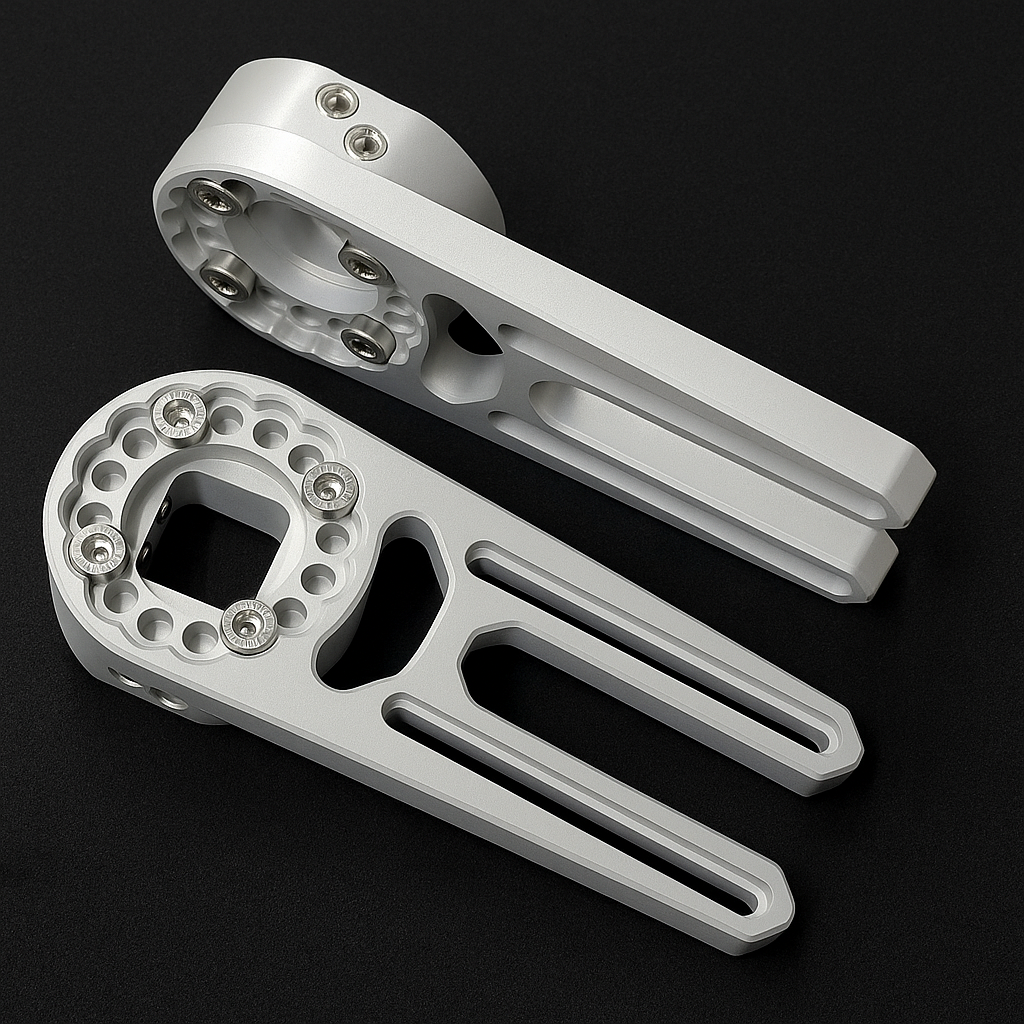

Motor Mounts v11.3 for MTB and Longboard Trucks with Expanded Adjustment Range (60–94mm) Compatible with the following trucks:
- IDEA Double Delta 270, 300, 320
- IDEA RKP
- IDEA TKP hangers for Surf-Rodz base plates
- Duality Trucks by Tito Systems (22mm x 22mm radius 6mm)
- MBS Matrix II
- MBS Matrix III
- Trampa ATB: 19.5×19.5mm
- Apex Air (22×22, radius 6mm)
- Boardnamics 220, 270mm
- Torque 220 CNC
- Trampa 12 Fifties
- 3DServisas FatBoy Solid (19.70 x 18.10)
- 3DServisas FatBoy Finality Channel (20×20)
- Newbee Triplelinks (22×22, 6mm Chamfer)
Contact us for clamps for other trucks.
Features and Advantages:
- Expanded Adjustment Range: The v11.3 motor mounts provide a new adjustment span of 60–94mm, offering maximum flexibility and compatibility for a wide variety of setups.
- High-Strength Material: Made from premium 7075 aluminum alloy, ensuring outstanding strength-to-weight ratio, durability, and resistance to stress, bending, and deformation.
- Tilt Angle Adjustment: Standard 22.5° with an optional intermediate 11.25° setting by reversing the clamp.
- Designed for 63xx Motors: Fits motors with a 44x44mm mounting hole pattern.
- Robust Construction: 10mm motor plate thickness, 15mm terminal thickness, with 4x M8 grub bolts per clamp for a secure fit.
- Clamp Diameter: 58mm.
- Included: 8 stainless steel M4x10mm screws for motor mounting.

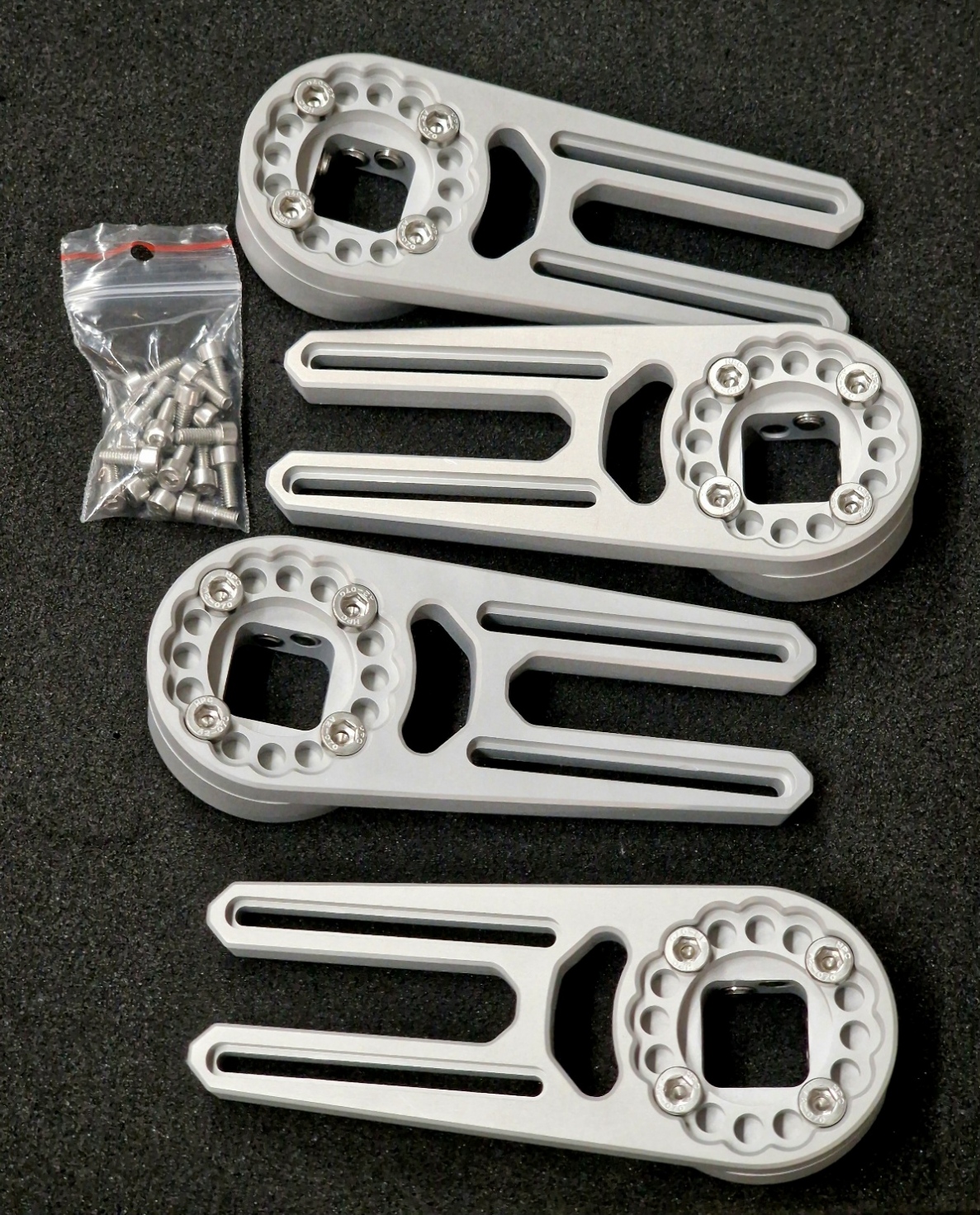

Price: Includes 2 motor mounts (left + right) + M4x10 screws for motor mounting.
