TKP Hanger 150, 180 mm compatible with Surf-Rodz Baseplate

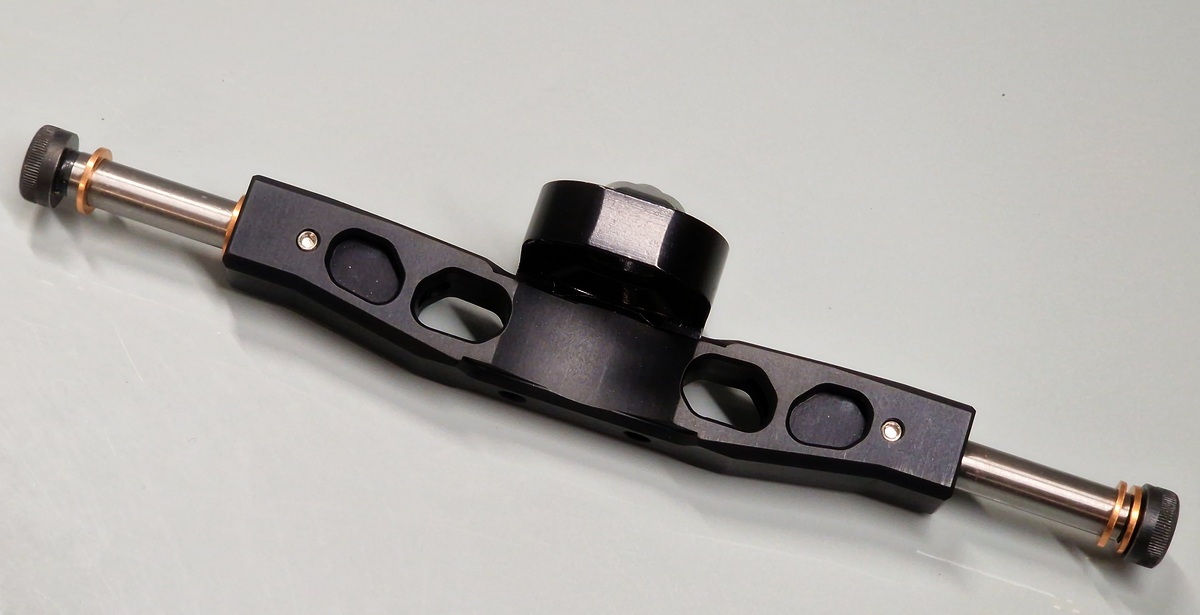

Fully CNC-machined aluminum hanger made of 7075 alloy

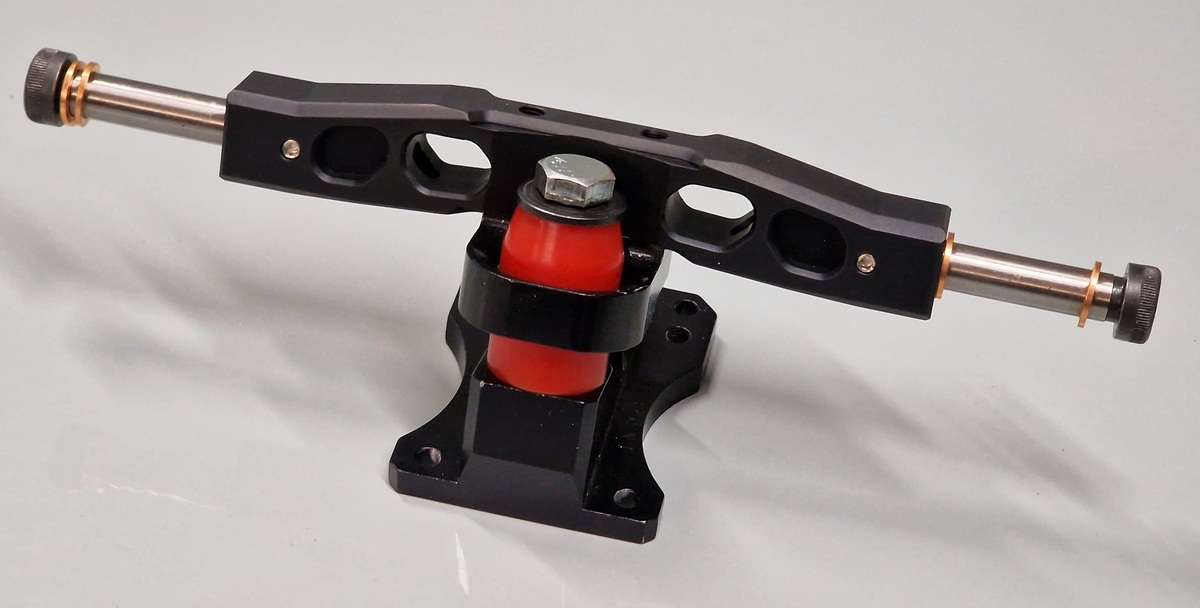

TKP hangers fit Surf-Rodz TKP base plates and Surf-Rodz TKP bushing kit.

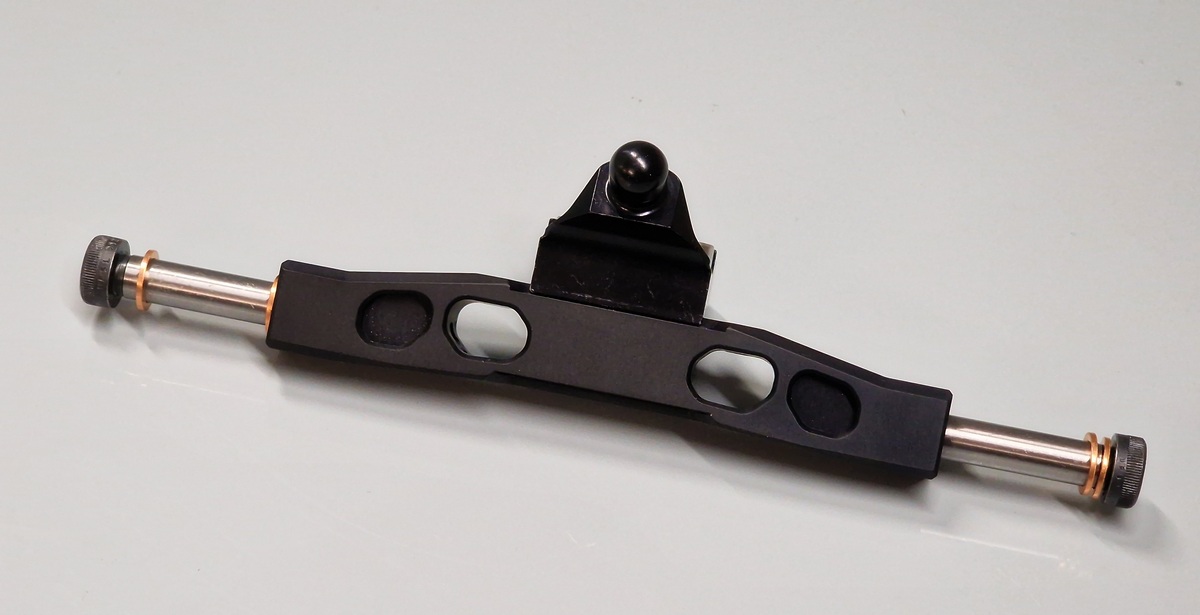

An innovative solution is the possibility to invert the hanger, and thanks to the asymmetrical shape, the clearance under the board changes by 7.5 mm.

The hanger is available in 2 variants:
1. width 180 mm
2. width 150 mm

Includes steel axes with a thickness of 10 mm
This is the width without axles
Axle length according to individual requirements:
Choice of: 25, 35, 45, 55 mm. This is the axle dimension measured between the hanger and the axle head.
The set includes axles with a length of 26mm (+/- 1mm)

If you want longer axles write it in the comment to your order

Price is for 1 hanger

The standard hanger has M6 threaded mounting holes (Surf-Rodz standard), if you want more strength, the hanger can have M8 threaded holes (stainless steel screws included).
If you order hangers with M8 threads, you need to ream the bushing set from 6 to 8 mm.

If you order a hanger with M8 mounting holes, you will receive 2 M8 bolts made of stainless steel in the set.

You can buy base plates and bushing set here or here

Base plate and bushing set Surf-Rodz is not part of the set, if you would like to order Base plate and bushing set Surf-Rodz please contact us

Price is for 1 hanger

Base plate, busging set, kingpin and bushings are not included
